LABORATORY BALANCES

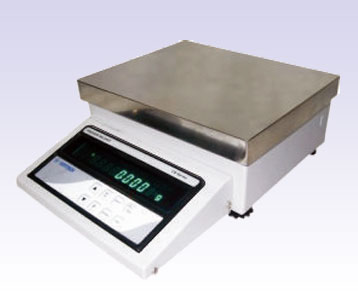

INDUSTRIAL PRECISION BALANCES ( 0.1g to 10 Kg )
Contech High Precision Balances incorporate advanced Electro Magnetic Force Compensation (EMFC) technology for offering unmatched accuracy and reliability, coupled with unique ADC circuit with inbuilt temperature compensation to offer a very high stability upto a resolution of 6 million counts. All adjustment parameters are programmable to take care of any minor mismatch of different sub assemblies & Balances are configured with these parameters.
● Backlite LCD Display
Customized, large, attractive LCD with multiparameter display illuminated by white backlite.
● Bi directional RS 232 interface
RS 232 port with selectable baud rate 4800,9600.
Various interface formats adopting this Balance in a setup to replace any other leading international Brand Balance. Can be configuered for an USB interface using optional RS232 to USB converter.
● GSM function
GSM function for paper & cloth quality checking.
● Multiple Weighing Units
Grams, Ounces, Troy Ounces, Carats, Mommes, Pennyweights, Grains, tola, Mesghal, Chinese taels.
● Percentage Weighing
Display of Reference weight, sample weight, % of sample with respect to reference weight
● Piece Counting
Parts calibration using preset quantity of samples or programmable quantity. Automatic count
● Fill Mode
1 set point - Indication when sample weight exceeds the set limit.
2 set points – Indication when the sample weight is between the
lower & upper limits.
● Accumulation
Storage of maximum 200 samples.
● Multiple Printing Mode
0,1,2,3 modes for various formats. Pause in case data
storage capacity in a Printer is less.
● External Calibration
Using preset weights.
Known weights can be corrected to + 15 counts.
● Response Time:
User selectable – Slow / Normal /Fast.
● Stability Band Width
Stability indicator appears on display with counts variation + 1, + 2, +3, + 4.
● Auto Zero Tracking
User selectable 0,1,2,3
● Return to Zero Tracking
Variable: 0,1,2,3,4
● Display Updation
Speed setting : Fast / Normal.
Specifications:
| MODELS | CBI-6001 | CBI-8001 |
|---|---|---|
| CAPACITY | 6000g | 8000g |
| READABILITY | 0.1g | 0.1g |
| REPEATABILITY (+/-) | 0.2g | 0.2g |
| LINEARITY (+/-) | 0.3g | 0.3g |
| PAN SIZE | 210x260 mm | 210x260 mm |
Specifications :
Taring Range : Up to full capacity
Response time : 3-5 seconds
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C
Optional Features :
* RS 232 to USB interface converter.
* ISO GLP compliance.
* Real time clock (RTC).
* Weigh below hook for density determination.
* Software for SQC (Statistical Quality Control)for Pharmaceutical Industries.
* Vacuum fluorescent display (VFD).
