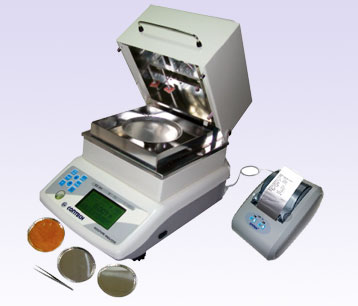

Moisture Balances

Contech Moisture Balances incorporate rapid Halogen heating with EMFC precision weighing technology to determine moisture content of sample quickly & effectively.

MOISTURE BALANCES (0.001 g - 220 g) Manufacturer Supplier and Exporters

* Easy & Fast Moisture Determination.
* 3 types of Testing Methods:- Manual, Time Programmable, Automatic.
* Weighing based on EMFC technique
* Heating by infrared halogen tube heater
* Temperature range upto 200°C (1°C)
* Moisture range: 0.1% to 100%
* Moisture measurement: Unit-
% wet base,
% dry base,
dry weight,
% dry to wet weight
* Display of time, temperature, weight & percentage moisture
* Graphical backlight LCD for displaying weight, setup parameters, testing parameters & results
* RS-232 interface For Connecting to a computer / printer
* Data storage upto 50 tests
* 10 programmable memory
* Time based moisture loss on the graphical display.
* Study of Pattern of Moisture loss by printing/Display on computer screen of online data-elapsed time, present sample weight and percentage moisture loss. Elapsed time interval can be programmed -10,20,30,60 & 120 Seconds

Specifications:

MODELS CAH-53 (M) CAH-123 (M) CAH-223(M)
CAPACITY 50g 120g 220g
READABILITY 0.001g 0.001g 0.001g
PAN SIZE 115 mm 115 mm 115 mm

Moisture Content :
Accuracy      :  0.1% for sample above 5g
(std. dev.)       0.5% for sample below 5g
Resolution   :  0.1%

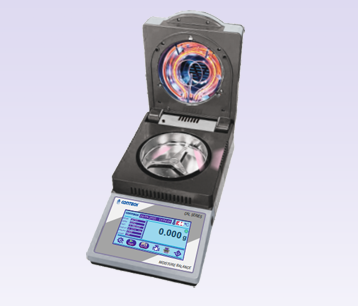

Moisture Balances (CAL Series)

Contech CAL series Moisture balances employ most modern technology combined with best computing capabilities to produce a very reliable, accurate and fast determination of moisture content in a sample, using parameters.weight loss on drying method. It incorporates a 5” touch screen display to easily enter the testing and othe

Moisture Balances (CAL Series) 0.001g to 180g Manufacturer Supplier and Exporters

Features :

● 3 types of Testing Methods:- Manual, Time Programmable, Automatic.
● Drying using infrared halogen lamp for faster moisture determination.
● Uniform heating due to the reflecting sample chamber.
● Moisture measurement Unit -
  * % Moisture on wet base
  * % Moisture on dry base
  * % dry to wet weight ratio
  * % wet to dry weight ratio
  * % Weight loss in grams
● 5” Touch screen graphic display.
● Real time graph of moisture loss on the display.
● 10 programmable drying methods.
● Storage of 100 test results in memory.
● Admin and ten users for GLP reports.
● Bidirectional RS 232 interface to interface with computers and printers.
● Printing & Display of test results on the completion of the test.
● Programmable periodic printing of moisture % while testing.

Specifications :
Moisture Content :
● Accuracy : 0.05% for sample above 5g
    0.1% for sample below 5g
● Resolution : 0.01%
● Temp. range : Ambient to 200 deg C in 1 deg increment
● Timer setting : 3min. to 120min. in 1min. increment.
● End point setting in auto mode : 0.01% per minute to 5% per minute
● Print interval selection : 10, 20, 30, 60, 120 seconds
● Taring Range : Up to full capacity
● Power Req : 230V+10%V AC, 50/60Hz, 550 Watt
● Operating Temperature : 15~50 deg C
● Dimension (mm) : 345 (L) x 185 (W) x 145 (H) when cover is closed.
    : 345 (L) x 185 (W) x 300 (H) when cover is open.

Optional Accessories :
● Aluminum sample pan
● Certified standard weights
● Certified temperature kit
● RS 232 to USB convertor
● 21CFR Part 11 / GLP compliant
● Thermal printer / Dot matrix printer

MODELS CAL-63 (M) CAL-133(M) CAL-183(M)
CAPACITY 60g 130g 180g
READABILITY 0.001g 0.001g 0.001g
PAN SIZE 100 mm 100 mm 100 mm

* All Specifications and designs are subject to change for improvement.
