LABORATORY BALANCES

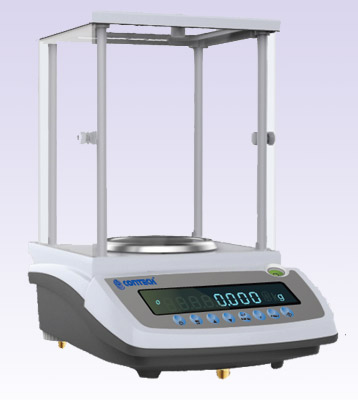

ANALYTICAL (Direct Loading) BALANCES 0.0001g to 220g
Contech High Precision Balances incorporate advanced Electro Magnetic Force Compensation (EMFC) technology for offering unmatched accuracy and reliability, coupled with unique ADC circuit with inbuilt temperature compensation to offer a very high stability upto a resolution of 6 million counts. All adjustment parameters are programmable to take care of any minor mismatch of different sub assemblies & Balances are configured with these parameters.
ANALYTICAL (Direct Loading) BALANCES 0.0001g to 220g
● Backlite LCD Display
Customized, large, attractive LCD with multiparameter
display illuminated by white backlite.
● Bi directional RS 232 interface
RS 232 port with selectable baud rate 4800,9600.
Various interface formats adopting this Balance in a setup to replace any other
leading international brand Balance. Can be configured for an USB interface using
optional RS 232 to USB converter.
● GSM function
GSM function for paper & cloth quality checking.
● Multiple Weighing Units
Grams, Ounces, Troy Ounces, Carats, Mommes, Pennyweights,
Grains, tola, Mesghal, Chinese taels.
● Percentage Weighing
Display of Reference weight, sample weight, % of sample with
respect to reference weight
● Piece Counting
Parts calibration using preset quantity of samples or programmable
quantity. Automatic count correction for precise calibration.
● Fill Mode
1 set point - Indication when sample weight exceeds the set limit.
2 set points – Indication when the sample weight is between the
lower & upper limits.
● Accumulation
Storage of maximum 200 samples.
● Multiple Printing Mode
0,1,2,3 modes for various formats. Pause in case data
storage capacity in a Printer is less.
● External Calibration
Using preset weights.
Known weights can be corrected to + 15 counts.
● Response Time:
User selectable – Slow / Normal /Fast.
● Stability Band Width
Stability indicator appears on display with counts variation + 1, + 2, +3, + 4.
● Auto Zero Tracking
User selectable 0,1,2,3
● Return to Zero Tracking
Variable: 0,1,2,3,4
● Display Updation
Speed setting : Fast / Normal.
Specifications:
Direct Loading Analytical Balances without motorized internal calibration
| MODELS | CAC-34 | CAC-64 | CAC-124 | CAC-224 |
|---|---|---|---|---|
| CAPACITY | 30g | 60g | 120g | 220g |
| READABILITY | 0.0001g | 0.0001g | 0.0001g | 0.0001g |
| REPEATABILITY (+/-) | 0.2mg | 0.2mg | 0.3mg | 0.3mg |
| LINEARITY (+/-) | 0.3mg | 0.3mg | 0.4mg | 0.4mg |
| PAN SIZE | 100mm | 100mm | 100mm | 100mm |
The balance is supplied with Breeze shield as standard.
Specifications:
Direct Loading Analytical Balances without motorized internal calibration
| MODELS | CAI-34 | CAI-64 | CAI-124 | CAI-224 |
|---|---|---|---|---|
| CAPACITY | 30g | 60g | 120g | 220g |
| READABILITY | 0.0001g | 0.0001g | 0.0001g | 0.0001g |
| REPEATABILITY(+/-) | 0.2mg | 0.2mg | 0.3mg | 0.3mg |
| LINEARITY (+/-) | 0.3mg | 0.3mg | 0.4mg | 0.4mg |
| PAN SIZE | 100mm | 100mm | 100mm | 100mm |
The balance is supplied with Breeze shield & Internal Motorized calibration as standard.
Specifications:
High Precision Balances With Motorized internal calibration
| MODELS | CAH-123 | CAH-223 | CAH-323 | CAH-413 | CAH-503 | CAH-603 | CAH-803 | CAH-1003 |
|---|---|---|---|---|---|---|---|---|
| CAPACITY | 120g | 220g | 320g | 410g | 500g | 600g | 800g | 1000g |
| READABILITY | 0.001g | 0.001g | 0.001g | 0.001g | 0.001g | 0.001g | 0.001g | 0.001g |
| REPEATABILITY(+/-) | 0.001g | 0.001g | 0.001g | 0.001g | 0.002g | 0.002g | 0.002g | 0.002g |
| LINEARITY (+/-) | 0.001g | 0.002g | 0.002g | 0.002g | 0.002g | 0.003g | 0.004g | 0.004g |
| PAN SIZE | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
Specifications :● Taring Range : Up to full capacity ● Response time : 3-5 seconds ● Power Req : 90-250V, 50/60Hz, 10 Watt ● Operating Temperature : 10 to 45 deg C
