CRANE SCALES

Contech manufactures Crane Scales for weighing upto 50 ton. Options available are remote key panel, heat shielding for high temperature application in foundries, Metallurgy and wireless remote Indicator.


CRANE SCALES 2kg to 60kg

STANDARD CRANE SCALES (CCS) (60Kg) Manufacturer Supplier and Exporters

  • Poly carbonate extremely robust, light weight impact resistant enclosure..
  • 25 mm height LED display
  • Maximum safety overload 200%.
  • Inbuilt sealed maintenance free re-chargeable battery & Battery charger.
  • RF Keyboard (Optional).
  • RS -232 Interface.
  •    MODELS CAPACITY ACC DIMENSION NET
    Weight
          H A B C D (Kg)
    CCS-60K10 60Kg 2Kg 335 50 75 22 600 4.2





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

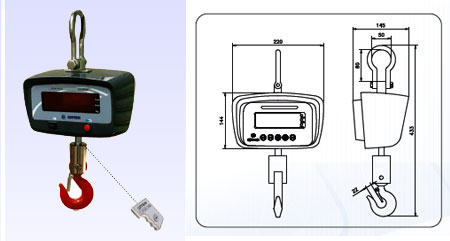

    CRANE SCALES ( 100g to 1ton )

    STANDARD CRANE SCALES (CCS) (0.5, 1 ton) Manufacturer Supplier and Exporters

  • Rugged aluminum diecast enclosure.
  • 25 mm height LED display
  • Maximum safety overload 200%.
  • Inbuilt sealed maintenance free re-chargeable battery and battery charger (Optional)
  • RF keyboard, operating distance 20mtr. (optional)
  • RS-232 Interface (Optional)
  • Multiple print options with Sr. No, Date, Time & Weight in horizontal / vertical mode.
  • Date & Time entry facility.
  • Multiple weighing units.
  • Storage of weights in memory upto 100 samples.
  • Power saving by switching off the display.
  • Automatic zero tracking.
  • Software linearity correction.
  • Display hold facility.
  • Gross & Net Weight function.
  •    MODELS CAPACITY ACC NET Weight
    (Kg)
    CCS-500K100 500Kg 100g 4.2
    CCS-1T200 1000kg 200g  4.2





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

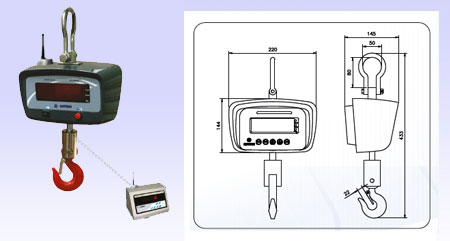

    CRANE SCALES with Wireless Indicator ( 100g to 1ton )

    CRANE SCALES with Wireless Indicator (0.5, 1 ton) Manufacturer Supplier and Exporters

  • Wireless transmission maximum operating distance between the Scale and Indicator is 50 mtr.
  • All specifications are same as standard crane scales (CCS)except there is no display on the sale and there is no RF keyboard.
  • Power indication LED on the scale.
  • Battery & charger for the loadcell & transmitter inside the scale.
  • Weight display on the desktop indicator along with controls.
  • RS-232 interface in the indicator (Optional).
  • Indicator with optional battery backup.
  • Date & time entry facility.
  • Storage of weights in memory upto 100 samples.
  • Display hold facility
  •    MODELS CAPACITY ACC NET Weight (Kg)
    CCS-500K100 500Kg 100g 4.2
    CCS-1T200 1000Kg 200g 4.2





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

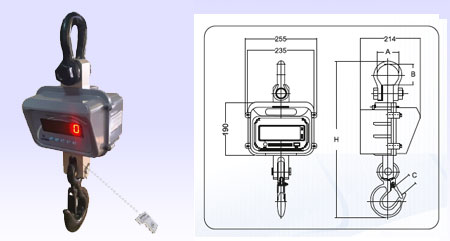

    CRANE SCALES ( 500g to 10ton )

    STANDARD CRANE SCALES (CCS) (2, 3, 5, 10, ton)

  • Rugged aluminum diecast enclosure.
  • 25 mm height LED display
  • Maximum safety overload 200%.
  • Inbuilt sealed maintenance free re-chargeable battery and battery charger (Optional)
  • RF keyboard, operating distance 20mtr. (optional)
  • RS-232 Interface (Optional)
  • Multiple print options with Sr. No, Date, Time & Weight in horizontal / vertical mode.
  • Date & Time entry facility.
  • Multiple weighing units.
  • Storage of weights in memory upto 100 samples.
  • Power saving by switching off the display.
  • Automatic zero tracking.
  • Software linearity correction.
  • Display hold facility.
  • Gross & Net Weight function.
  •    MODELS CAPACITY ACC DIMENSION NET
    Weight
    (Kg)
    H A B C
    CCS-2T500 2 ton 500g 560 68 80 33 13
    CCS-3T1K 3 ton 1Kg 560 68 80 33 13
    CCS-5T2K 5 ton 2kg 690 75 130 40 18
    CCS-10T5K 10ton 5kg 775 90 115 45 29
    CCS-15T5K 15 ton 5Kg 820 98 125 60 35





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

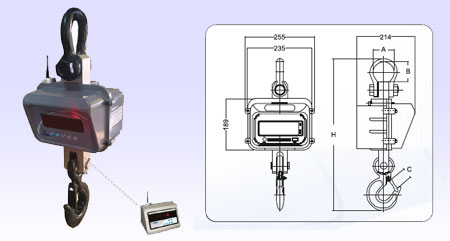

    CRANE SCALES ( 500g to 10ton )

    CRANE SCALES with Wireless Indicator (2, 3, 5, 10 ton)

  • Wireless transmission maximum operating distance between the Scale and Indicator is 50 mtr.
  • All specifications are same as standard crane scales (CCS)except there is no display on the sale and there is no RF keyboard.
  • Power indication LED on the scale.
  • Battery & charger for the loadcell & transmitter inside the scale.
  • Weight display on the desktop indicator along with controls
  • RS-232 interface in the indicator (Optional).
  • Indicator with optional battery backup.
  • Date & Time entry facility.
  • Storage of weights in memory upto 100 samples.
  • Display hold facility.
  • Common Specifications :

       MODELS CAPACITY ACC DIMENSION NET Weight
    (Kg)
    H A B C
    CCS-2T500 2 ton  500kg 560 68 80 33 13
    CCS-3T1K 3 Ton 1kg 560 68 80 33 13
    CCS-5T2K 5 Ton 2kg 690 75 130 40 18
    CCS-10T5K 10 Ton 5kg 775 90 115 45 29
    CCS-15T5K 15 Ton 5kg 820 98 125 60 35





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

    CRANE SCALES ( 5kg to 20ton )

    Standard Crane Scales (CCS)

  • Rugged aluminum diecast enclosure.
  • 25 mm height LED display
  • Maximum safety overload 200%.
  • Inbuilt sealed maintenance free re-chargeable battery and battery charger (Optional)
  • RF keyboard, operating distance 20mtr. (optional)
  • RS-232 Interface (Optional)
  • Multiple print options with Sr. No, Date, Time & Weight in horizontal / vertical mode.
  • Date & Time entry facility.
  • Multiple weighing units.
  • Storage of weights in memory upto 100 samples.
  • Power saving by switching off the display.
  • Automatic zero tracking.
  • Software linearity correction.
  • Display hold facility.
  • Gross & Net Weight function.
  • Common Specifications :

       MODELS CAPACITY ACC DIMENSION NET Weight
    (Kg)
    H A B C
    CCS-20T5K 20 ton  5kg 1058 130 230 65 100





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

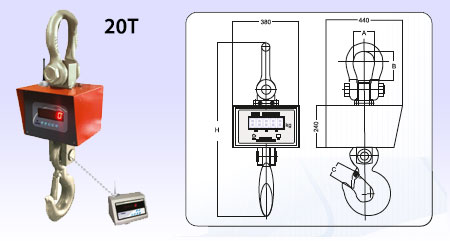

    CRANE SCALES ( 5kg to 20ton )

    CRANE SCALES with Wireless Indicator

  • Wireless transmission maximum operating distance between the Scale and Indicator is 50 mtr.
  • All specifications are same as standard crane scales (CCS) except there is no display on the sale and there is no RF keyboard.
  • Power indication LED on the scale.
  • Battery & charger for the loadcell & transmitter inside the scale.
  • Weight display on the desktop indicator along with controls.
  • RS-232 Interface (Optional).
  • Indicator with optional battery backup.
  • Date & time entry facility.
  • Storage of weights in memory upto 100 samples.
  • Display hold facility.
  • MODELS CAPACITY ACC DIMENSION NET Weight
    (Kg)
    H A B C
    CCS-20T5K 20 ton 5kg 1058 130 230 65 100





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

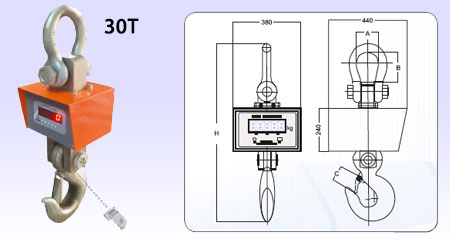

    CRANE SCALES ( 5kg to 30ton )

    STANDARD CRANE SCALES (CCS)

  • Rugged aluminum diecast enclosure.
  • 25 mm height LED display
  • Maximum safety overload 200%.
  • Inbuilt sealed maintenance free re-chargeable battery and battery charger (Optional)
  • RF keyboard, operating distance 20mtr. (optional)
  • RS-232 Interface (Optional)
  • Multiple print options with Sr. No, Date, Time & Weight in horizontal / vertical mode.
  • Date & Time entry facility
  • Multiple weighing units.
  • Storage of weights in memory upto 100 samples.
  • Power saving by switching off the display.
  • Automatic zero tracking.
  • Software linearity correction
  • Display hold facility.
  • Gross & Net Weight function.
  •    MODELS CAPACITY ACC DIMENSION NET Weight
    (Kg)
    H A B C
    CCS-30T10K 30 ton 10kg 1072 140 145 80 143





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

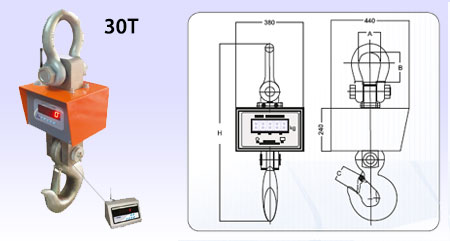

    CRANE SCALES ( 5kg to 30ton )

    STANDARD CRANE SCALES with Wireless Indicator

  • Wireless transmission maximum operating distance between the Scale and Indicator is 50 mtr.
  • All specifications are same as standard crane scales (CCS)except there is no display on the sale and there is no RF keyboard.
  • Power indication LED on the scale.
  • Battery & charger for the loadcell & transmitter inside the scale.
  • Weight display on the desktop indicator along with controls.
  • RS-232 interface in the indicator (Optional).
  • Indicator with optional battery backup.
  • Date & time entry facility.
  • Storage of weights in memory upto 100 samples.
  • Display hold facility.
  •    MODELS CAPACITY ACC DIMENSION NET Weight
    (Kg)
    H A B C
    CCS-30T10K 30ton 10kg 1072 140 145 80 143





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

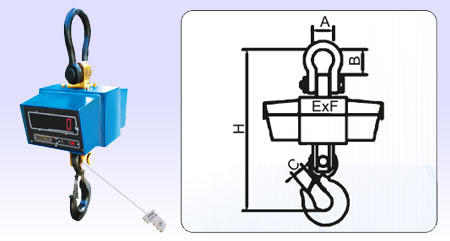

    CRANE SCALES ( 10kg to 50 ton )

    CRANE SCALES ( 30, 40, 50 ton) Manufacturer Supplier and Exporters

  • Steel heavy duty enclosure.
  • 38mm height LED display
  • Maximum safety overload 200%
  • Inbuilt sealed maintenance free re-chargeable battery and battery charger (Optional)
  • RF keyboard, operating distance 20mtr. (optional)
  • RS-232 Interface (Optional)
  • Multiple print options with Sr. No, Date, Time & Weight in horizontal / vertical mode.
  • Date & time entry facility.
  • Multiple weighing units.
  • Storage of weights in memory upto 100 samples.
  • Power saving by switching off the display.
  • Automatic zero tracking.
  • Software linearity correction..
  • Display hold facility.
  • Gross & Net Weight function.
  •   MODELS CAPACITY ACC DIMENSION E x F NET Weight
    (Kg)
    H A B C
    CCS-30T10K 30 ton 10Kg 1110 160 260 90 500x310 156
    CCS-40T20K 40 ton 20Kg 1200 180 220 110 440x410 235
    CCS-50T20K 50 ton 20Kg 1310 200 270 110 440x410 280





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

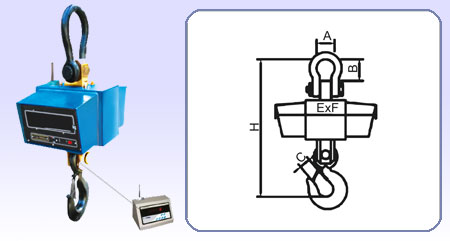

    CRANE SCALES ( 10kg to 50ton)

    CRANE SCALES with Wireless Indicator ( 30, 40, 50 ton) Manufacturer Supplier and Exporters

  • Wireless transmission maximum operating distance between the Scale and Indicator is 50 mtr.
  • All specifications are same as standard crane scales (CCS) except there is no display on the sale and there is no RF keyboard.
  • Power indication LED on the scale
  • Battery & charger for the loadcell & transmitter inside the scale.
  • Weight display on the desktop indicator along with controls.
  • RS-232 interface in the indicator (Optional).
  • Indicator with optional battery backup.
  • Date & time entry facility.
  • Storage of weights in memory upto 100 samples.
  • Display hold facility.
  •   MODELS CAPACITY ACC DIMENSION E x F NET Weight
    (Kg)
    H A B C
    CCS-30T10K 30 ton 10Kg 1110 160 260 90 500x310 156
    CCS-40T20K 40 ton 20Kg 1200 180 220 110 440x410 235
    CCS-50T20K 50 ton 20Kg 1310 200 270 110 440x410 280





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

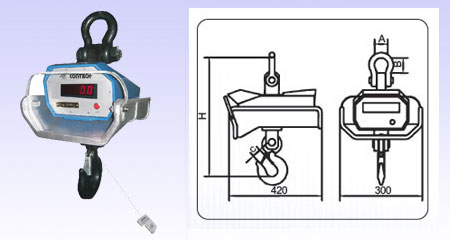

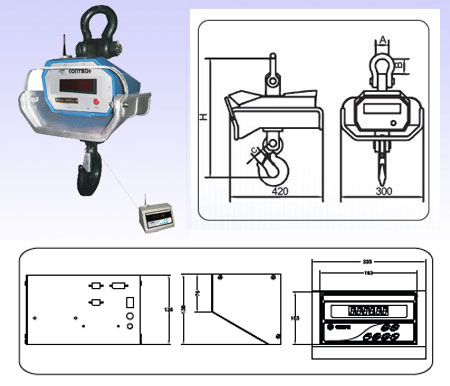

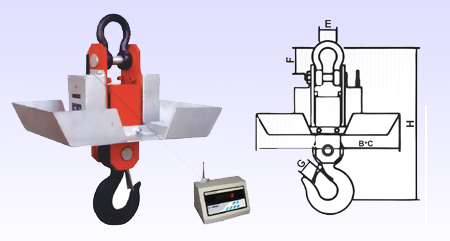

    CRANE SCALES with Heat Insulating Shield (CCS) ( 200g to 15 ton )

    CRANE SCALES with Heat Insulating Shield (CCS) ( 1, 2, 3, 5, 10, 15 ton ) Manufacturer Supplier and Exporters

  • Heavy duty aluminum diecast enclosure.
  • Special construction for high temperature shielding.
  • Minimum distance for normal operation is 2 mtr from a heat radiation source at 1500o C.
  • 25 mm height LED display.
  • Maximum safety overload 200%.
  • Inbuilt sealed maintenance free re-chargeable battery and battery charger (Optional).
  • Infrared remote keypad, operating distance 5 mtr (Optional).
  • RS-232 Interface (Optional).
  • Multiple print options with Sr. No, Date, Time & Weight in horizontal / vertical mode.
  • Date & Time entry facility.
  • Multiple weighing units.
  • Storage of weights in memory upto 100 samples.
  • Power saving by switching off the display.
  • Automatic zero tracking.
  • Software linearity correction.
  • Display hold facility.
  • Gross & Net Weight function.
  •   MODELS CAPACITY ACC DIMENSION NET Weight
    (Kg)
    H A B C
    CCS-1T200 1 ton 200g 465 56 65 25 26
    CCS-2T500 2 ton 500g 490 56 65 32 30
    CCS--3T1K 3 ton 1kg 570 72 90 36 36
    CCS-5T2K 5 ton 2Kg 640 90 110 50 42
    CCS-10T5K 10 ton 5Kg 920 140 230 60 77
    CCS-15T5K 15 ton 5Kg 980 140 230 70 85





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

    CRANE SCALES with Heat Insulating Shield & Wireless Indicator (CCS) ( 200g to 15ton )

    CRANE SCALES with Heat Insulating Shield & Wireless Indicator (CCS) (1, 2, 3, 5, 10, 15 ton) Manufacturer Supplier and Exporters

  • Heavy duty aluminum diecast enclosure.
  • Special construction for high temperature shielding.
  • Minimum distance for normal operation is 2 mtr from a heat radiation source at 1500o C.
  • Wireless transmission maximum operating distance between the Scale and Indicator is 50 mtr.
  • All specifications are same as standard crane scales with heat insulating shield(CCS) except there is no display on the scale and there is no remote keyboard.
  • Power indication LED on the scale.
  • Battery & charger for the loadcell & transmitter inside the scale.
  • Weight display on the desktop indicator along with controls.
  • RS-232 interface in the indicator.
  • Storage of weights in memory upto 100 samples.
  •   MODELS CAPACITY ACC DIMENSION NET Weight
    (Kg)
    H A B C
    CCS-1T200 1 ton 200g 465 56 65 25 26
    CCS-2T500 2 ton 500g 490 56 65 32 30
    CCS--3T1K 3 ton 1kg 570 72 90 36 36
    CCS-5T2K 5 ton 2Kg 640 90 110 50 42
    CCS-10T5K 10 ton 5Kg 920 140 230 60 77
    CCS-15T5K 15 ton 5Kg 980 140 230 70 85





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

    CRANE SCALES wireless Transmission, High-temperature thermal insulation and armored type 20kg to 50ton

    CRANE SCALES wireless Transmission, High-temperature thermal insulation and armored type 20kg to 50ton Manufacturer Supplier and Exporters

  • Special design for high-temperature thermal insulation use, with normal operation at least 2m away from heat radiation source at 1500oC.
  • High-strength alloy steel
  • U-shaped structure with compression - typed sensor.
  • Wireless transmission distance between scale & indicator is 50m ( approx).
  • Maximum safety overload : 125% F.S.
  • Limited Overload : 400% F.S.
  •    MODELS CAPACITY ACC NET
    Weight
    (Kg)
    CCS-30T/20K 30000 kg 20kg 370
    CCS-50T50K 50000 kg 50kg 750
