INDUSTRIAL SCALES Manufacturer Supplier and Exporters
Contechoffers total weighing solution for all the Industrial segments with various options. The applications are Table Top Scales, Piece Counting Scales, Platform Scales, Floor Scales, Pallet Scales, Waterproof Scales, Flameproof Scales, etc.

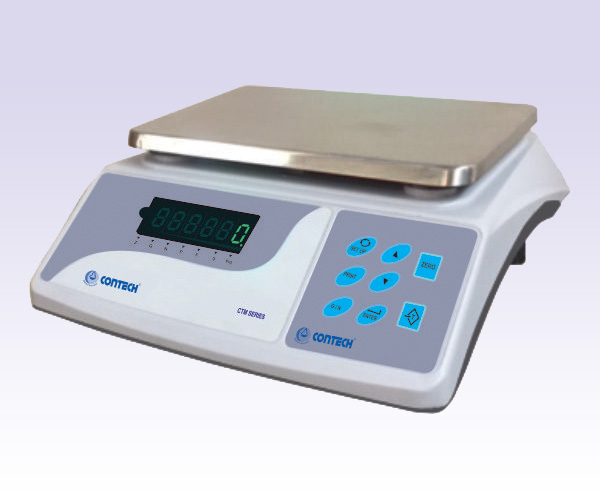

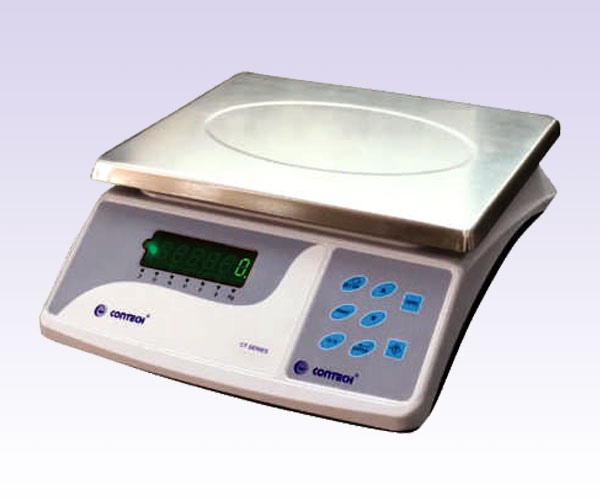

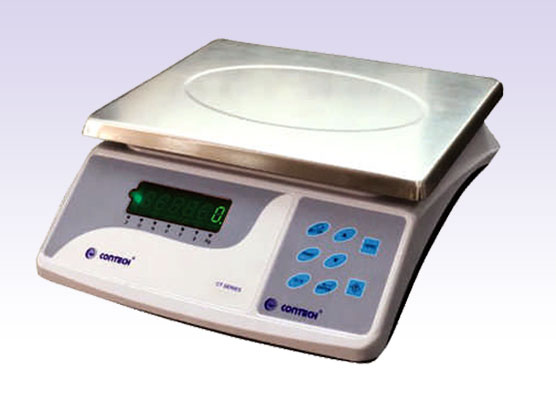

TABLETOP SCALES (0.1 g - 35 kg)
* Incorporate high quality loadcells.
* Multiple weighing units, Gram, Kilo gram, carat, litre, pound.
* Piece counting facility, upto 25 different types.
* Storage of weights in memory and printing, upto 100 weights.
* Power saving mode.
* Bi-directional RS232 interface to connect with computers and printers.
* Set point facility up to 2 limits with relay output (potential free contacts) - optional.
* Auto power off.
* Peak hold facility (Optional).
* Date and time facility.
* Multiple print options with Sr.no, date, time and weight in horizontal/vertical mode.
* Automatic zero tracking.
* User selectable Tare/Zero mode option with Net/gross facility for minimum use.
* Overload & Shock load Protection.
* Bright LED display, high Bright Green LED display (optional).
* Battery backup (optional). Rechargeable sealed maintenance free battery.
* Additional display (optional).
Specifications:
| MODELS | CTH-15001 | CTH-30001 | CTH-30002 | CTH-35001 | CT-30K1 | CT-35K2 |
|---|---|---|---|---|---|---|
| Capacity | Â 15kg | 30kg | 30kg | 35kg | 30kg | 35kg |
| Readability | 0.1g | 0.1g | 0.2g | 0.1g | 1g | 2g |
| Linearity (+/-) | 0.2g | 0.2g | 0.4g | 0.2g | 2g | 5g |
| Pan Size(mm) | 225 x 300 | 225 x 300 | 225 x 300 | 225 x 300 | 225 x 300 | 225 x 300 |
Taring : Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C
