Manufacturer, Supplier, Exporter of ELECTRO CHEMICAL INSTRUMENTS

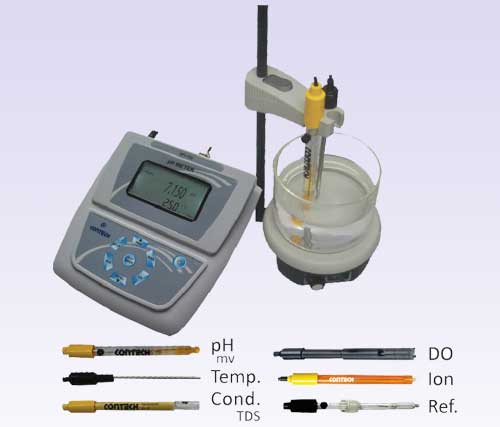

Contech, Multiparameter Meter is the perfect combination of advanced Electro chemical sensor technology with state of the art electronics and software design. This instrument can measure several parameters, like pH, mV, Conductivity TDS, Salinity, Resistivity, Dissolved oxygen & temperature using different electrodes. Large scale integration of circuit using surface mounted components and dedicated backlite LCD with display of various measuring parameter units for different parameters being measured has enabled to use this compact instrument for the measurement of multiple parameters without any ambiguity. This instrument is very useful where all parameters need to be measured like in the field of environmental protection, water quality checking, disease control, biological agriculture, aqua culture & scientific research.
Multiparameter Meter pH, mv, ms ,µs, mg/L, ppt, %, ppm,oC
FOR WATER QUALITY ANALYSIS - CMPM-01
Features
* pH , mV, Conductivity, Resistivity, TDS, Salinity, DO, Temperature modes.
* Automatic or Manual temperature Compensation.
* 3 point pH calibration.
* Buffers selectable from 1.68pH, 4.00pH, 4.01pH, 6.86pH, 7.00pH, 9.18pH, 9.20pH. 10.01pH and 12.45pH.
* Automatic buffer recognition.
* 1 point conductivity calibration for the entire range.
* Dissolved oxygen electrode with the salinity measurement feature to achieve automatic salinity & temperature compensation.
* Automatic air pressure compensation for DO with the help of air pressure sensor.
* Polarographic type DO electrode offers short polarization time, quick response and precise measurements.
* Bi directional RS232 interface. Baud rate selectable from 1200,2400,4800 and 9600.

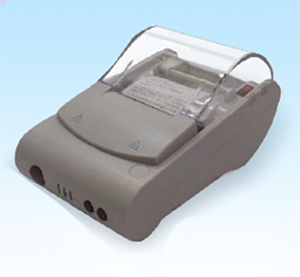

* Single and continuous print out of measuring parameters.
* Multiple Printout types. Combinations selectable from Sr. No., pH, mV, conductivity, TDS, Salinity, DO, Date, time and temperature..
* Real Time Clock.
* Calibration report as per GLP requirements.
* Electrode Slope and mV offset display.
* LCD display with Backlight.
* Memory storage of 100 measurements.
* Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
* Temperature calibration with respect to solution of known temperature.
Magnetic Stirrer : CMS - 01 Optional
For Proper Performance Of DO Meter, Magnetic Stirrer Is Must
| pH | mV | Conductivity | Resistivity | TDS | Salinity | DO | Temp | |
| Range | 0 - 14 pH | +1999.9mV | Conductivity : 0~200m5/cm spread into 5 ranges 0.00~20.00µS/cm, 20.0~200.0 µS/cm, 200~2000 µS/cm 2.00~20.00mS/cm, 20.0~200.0 mS/cm, |
0~100MΩ.cm | 0~100ppt(g/L) | 0~100ppt 0~200.0%
|
0~40.00mg/L(ppm), | -10.0 ~ 110.0°C |
| Accuracy | +0.02pH | +1mV | +1% FS | +1% FS | +0.4°C | |||
| ATC | 0~100°C | 0~100°C | 0~50°C | 0~50°C | 0~50°C | 0~50°C | 0~45°C | +0.4°C |
| Electrode | EpHG07 | EpHG05 | ECNG01 | ECNG01 | ECNG01 | ECNG01 | EDO01 | ETS01 |

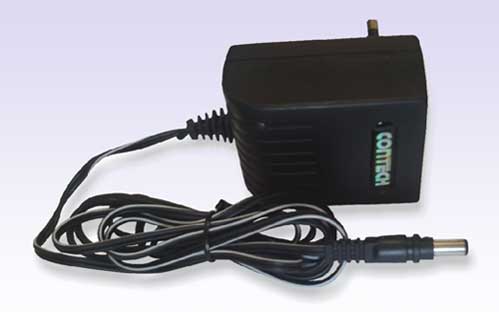

* Power : 9V/ 500 mA External adaptor or battery backup unit (Optional)
* Operating Temperature : 15~45°C
* Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
* Meter Weight : 700 g
Optional Accessories :
Magnetic Stirrer MS-01,

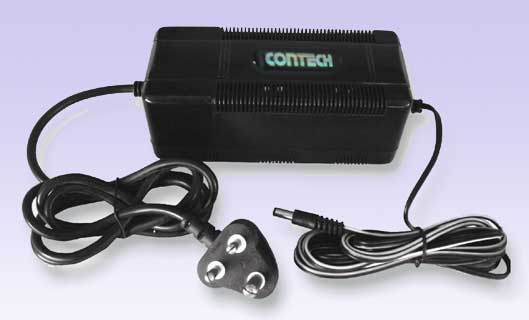

Battery backup unit BBEC-01

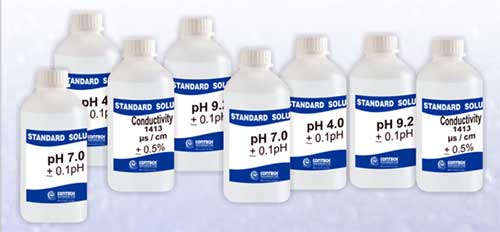

Calibration Standards
LAB pH METER, PRECISION
pH, mv,°C
CpH-102 & CpH-103
Contech CpH -102, an advanced Bench top pH Meter is the perfect combination of the state of the art electronic design coupled with advanced software & reliable electro chemical sensor higher uses a combination plastic pH electrode with inbuilt temperature sensor for the simultaneous measurements of pH & temperature & automatic temperature correction. CpH-103, a higher end bench pH Meter incorporates a glass electrode & seperate temperature sensor for high accuracy pH measurement & automatic temperature compansation.
These pH Meters cover innumerable applications in Research, Education, Chemical, Pharmaceutical, Food processing, Cosmetic, Biological & Agricultural fields.
Features
* pH, mV and temperature measurement.
* Automatic or Manual temperature Compensation.
* 3 point pH calibration, Automatic buffer recognition.
* Buffers selectable from 1.68pH, 4.00pH, 4.01pH, 6.86pH, 7.00pH, 9.18pH, 9.20pH. 10.01pH and 12.45pH.
* Bi directional RS232 interface. Baud rate selectable from 1200,2400,4800 and 9600.
* Single and continuous print out of measuring parameters.
* Multiple Printout types. Combinations selectable from Sr. No., pH, mV, Date, time and temperature.
* Real Time Clock. Calibration report as per GLP requirements.
* Electrode Slope and mV offset display.
* Memory storage of 100 pH measurements.
* Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
* Temperature calibration with respect to solution of known temperature.
* Micro-Controller Based.
Specifications:
| Model | CpH-102 | CpH-103 |
| pH Range | 0-14pH | -2.0000~19.999pH |
| pH Resolution | 0.01pH | 0.001pH |
| pH Accuracy | +0.002pH | +0.002pH |
| Temperature compensation | Automatic or Manual | Automatic or Manual |
| Temperature range | 0~100°C | 0~100°C |
| mV Range | +1999mV | +1999.9mV |
| mV Resolution | 1mV | 0.1mV |
| mV Accuracy | +1mV | +0.5mV |
| Electrode | pH combination electrode with built in temperature sensor - Plastic - EpHG07 |
pH combination electrode - Glass - EpHG07 |
| Temperature Electrode | Built in | Temperature sensor electrode |
* Power : 9V/ 500 mA External adaptor
* Operating Temperature : 15~45°C
* Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
* Meter Weight : 700 g
* Optional Accessories : Magnetic Stirrer MS-01, Battery backup unit BBEC-01 Calibration Standards
Conductivity Meters
ms,µs,mg/L,ppt,°C
CC-01
Contech Laboratory Conductivity Meter can measure Conductivity, Resistivity, Total Dissolved Solids(TDS), Salinity & Temperature of any solution. This instrument is suitable in the field of water quality monitoring, aqua culture, biological agriculture, scientific & educational research, food safety, petrochemical and environmental protection. It uses ECNG01 glass electrode with a platinum plate sensitive element coated with platinum black to avoid errors due to polarization especially in solutions of high conductivity.
Features
* Conductivity, resistivity, total dissolved solids(TDS), salinity & temperature measurement.
* Automatic or manual temperature compensation.
* 1 point calibration for the entire range.
* Bi directional RS232 interface. Baud rate selectable from 1200, 2400, 4800 and 9600.
* Single and continuous print out of readings.
* Multiple Printout types. Combinations selectable from different measuring units.
* Real Time Clock. Calibration report as per GLP requirements.
* Memory storage of 100 measurements.
* Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
* Temperature calibration with respect to solution of known temperature.
Specifications:
| Measurement Range | Conductivity : 0~200mS/cm spread into 5 ranges 0.00~20.00µS/cm, 20.0~200.0 µS/cm, 200~2000 µS/cm, 2.00~20.00mS/cm, 20.0~200.0 mS/cm, Resistivity : 0~100MΩcm TDS : 0~100ppt (g/L) Salinity : 0~100ppt Temperature : -10.0 ~ 110.0°C |
| Precision | Conductivity : +1% FS Temperature : +0.4°C |
| ATC | 0~50°C |
| Display | Backlite LCD |
| Power | 9V/ 500 mA External adaptor or battery backup unit (Optional) |
| Operating Temperature | 15~45°C |
| Meter Dimensions (mm) | 165 (L) x 190 (D) x 60 (H) |
| Meter Weight | 700 g |
| Electrode | Conductivity electrode - ECNG01 Temperature sensor electrode- ETS01 |
* Power : 9V/ 500 mA External adaptor
* Operating Temperature : 15~45°C
* Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
* Meter Weight : 700 g
* Optional Accessories : Magnetic Stirrer MS-01, Battery backup unit BBEC-01 Calibration Standards.
DISSOLVED OXYGEN METER
mg/L,ppm,%,°C
CDO-01
Contech Dissolved Oxygen Meter incorporates membrane electrode method to measure dissolved oxygen concentration, and saturation of water solution. Polarographic type dissolved oxygen electrode offers quick response, accurate measurement, short polarization time along with features for automatic salinity and temperature compensation & air pressure correction with the help of built in air pressure sensor. DO meters are useful for aquaculture, monitoring of water resource, beverage production, sewage disposal, biological agriculture, environmental protection and scientific research.
Features
* Dissolved oxygen and temperature measurement.
* Polarographic type DO electrode offers short polarization time, quick response and precise measurements.
* Easy to use electrode calibration sets and diaphragm cap.
* Dissolved oxygen electrode with the salinity measurement feature to achieve automatic salinity & temperature compensation.
* Automatic air pressure correction with the help of air pressure sensor.
* Bi directional RS232 interface. Baud rate selectable from 1200,2400,4800 and 9600.
* Single and continuous print out of readings.
* Multiple Printout types. Combinations selectable from Different Measuring Parameters.
* Real Time Clock. Calibration report as per GLP requirements.
* Memory storage of 100 test results.
* Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
Specifications:
| Measurement Range | DO : 0~40.00mg/L (ppm), 0~200.0% Temperature : 0 ~ 45°C |
| Precision | DO : +1 FS Temperature : +0.4°C |
| Temperature correction | Automatic 0~45°C |
| Salinity correction | Automatic 0~45ppt |
| Air pressure correction | Automatic 80 ~ 105kPa |
| Display | Backlight LCD |
| Power | 9V/ 500 mA External adaptor or battery backup unit (Optional) |
| Operating Temperature | 15~45°C |
| Meter Dimensions (mm) | 165 (L) x 190 (D) x 60 (H) |
| Meter Weight | 700 g |
| Electrode | DO electrode-EDO01 |
* Power : 9V/ 500 mA External adaptor
* Operating Temperature : 15~45°C
* Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
* Meter Weight : 700 g
* Optional Accessories : Magnetic Stirrer MS-01, Battery backup unit BBEC-01 Calibration Standards
ORP METER
pH,Rel.mv,°C
COR-01
Contech ORP Meter combined with EORP-01 electrode is used for the measurement of oxidation reduction potential (ORP) in liquids. These ORP meters are mainly used in waste water testing. For pH measurements, pH electrode (Optional) should be used. However the instrument has to be recalibrated with pH electrode using pH standard solutions.
Features
* Rel.mV and temperature measurement.
* Automatic or manual temperature compensation.
* Automatic buffer recognition.
* Bi directional RS232 interface. Baud rate selectable from 1200, 2400,4800 and 9600.
* Single and continuous print out of Rel.mV.
* Multiple Printout types. Combinations selectable from Sr. No., Rel.mV, Date, time and temperature.
* Real Time Clock. Calibration report as per GLP requirements.
* Electrode Slope display.
* Memory storage of 100 measurements.
* Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
* Temperature calibration with respect to solution of known temperature.
Specifications :
| ORP Range | +2000mV |
| Temperature range | 0~100°C |
| ORP Resolution | 1mV |
| ORP Accuracy | +1mV |
| Temperature compensation | Automatic or Manual |
| Input Resistance | >1x1012Ω |
| Display | Backlight LCD, Character height |
| Power | 9V/ 500 mA External adaptor or battery backup unit (Optional) |
| Operating Temperature | 15~45°C |
| Meter Dimensions (mm) | 165 (L) x 190 (D) x 60 (H) |
| Meter Weight | 700 g |
| ORP Electrode | ORP Combination Electrode EORP-01 Temperature Electrode ETS01 |
*For pH measurements, pH electrode (Optional) should be used. However the instrument has to be recalibrated with pH electrode using pH standard solutions.
* Power : 9V/ 500 mA External adaptor
* Operating Temperature : 15~45°C
* Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
* Meter Weight : 700 g
* Optional Accessories : Magnetic Stirrer MS-01, Battery backup unit BBEC-01 Calibration Standards.
pH/Conductivity Meter
pH,mv,ms,µs,mg/L,ppt,°C
CpHC
Features
* pH , mV, Conductivity, Resistivity, TDS, Salinity, Temperature modes.
* Automatic or Manual temperature Compensation.
* 3 point pH calibration.
* Buffers selectable from 1.68pH, 4.00pH, 4.01pH, 6.86pH, 7.00pH, 9.18pH, 9.20pH. 10.01pH and 12.45pH.
* Automatic buffer recognition.
* 1 point conductivity calibration for the entire range.
* Bi directional RS232 interface. Baud rate selectable from 1200,2400,4800 and 9600.
* Single and continuous print out of measuring parameters.
* Multiple Printout types. Combinations selectable from Sr. No., pH, mV, conductivity, TDS, Salinity, Date, time and temperature.
* Real Time Clock.
* Calibration report as per GLP requirements.
* Electrode Slope and mV offset display.
* LCD display with Backlight.
* Memory storage of 100 measurements.
* Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
* Temperature calibration with respect to solution of known temperature.
| pH Range | 0-14pH |
| mV Range | ±1999.9mV |
| Conductivity Range | 0~200mS/cm spread into 5 ranges 0.00~20.00μS/cm, 20.0~200.0 μS/cm, 200~2000 μS/cm 2.00~20.00mS/cm, 20.0~200.0 mS/cm, |
| Resistivity Range | 0~100MΩcm |
| TDS Range | 0~100ppt(g/L) |
| Salinity Range | 0~100ppt |
| Temperature Range | -10.0~110.0°C |
| pH Accuracy | +0.02pH |
| mV Accuracy | +1mV |
| Conductivity Accuracy | +1% FS |
| Temperature Accuracy | +1% FS |
| ATC pH | 0~100°C |
| ATC Conductivity | 0~50°C |
| pH Electrode | pH combination electrode-EpHG07 |
| Temperature Electrode | Temperature sensor electrode-ETS01 |
| Conductivity Electrode | ECNG01 |
* Power : 9V/ 500 mA External adaptor
* Operating Temperature : 15~45°C
* Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
* Meter Weight : 700 g
* Optional Accessories : Magnetic Stirrer MS-01, Battery backup unit BBEC-01 Calibration Standards
pH / Dissolved Oxygen Meter
pH,mv,mg/L,ppm,%,°C
CpHDO
Features
* pH , mV, DO, Temperature modes.
* Dissolved oxygen electrode with the salinity measurement feature to achieve automatic salinity & temperature compensation.
* Automatic air pressure correction with the help of air pressure sensor.
* Polarographic type DO electrode offers short polarization time, quick response and precise measurements.
* Automatic or Manual temperature Compensation.
* 3 point pH calibration.
* Buffers selectable from 1.68pH, 4.00pH, 4.01pH, 6.86pH, 7.00pH, 9.18pH, 9.20pH. 10.01pH and 12.45pH.
* Automatic buffer recognition.
* Bi directional RS232 interface. Baud rate selectable from 1200,2400,4800 and 9600.
* Single and continuous print out of measuring parameters.
* Multiple Printout types. Combinations selectable from Sr. No., pH, mV, DO, date, time and temperature.
* Real Time Clock.
* Calibration report as per GLP requirements.
* Electrode Slope and mV offset display.
* LCD display with Backlight.
* Memory storage of 100 measurements.
* Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
* Temperature calibration with respect to solution of known temperature.
| pH Range | 0-14pH |
| mV Range | +1999.9mV |
| DO Range | 0~40.00mg/L(ppm) |
| Temperature Range | -10.0 ~ 110.0°C |
| pH Accuracy | +0.02pH |
| mV Accuracy | +1mV |
| DO Accuracy | +1%FS |
| Temperature Accuracy | +0.4°C |
| ATC pH | 0~100°C |
| ATC DO | 0~45°C |
| pH Electrode | pH combination electrode-EpHG07 |
| Temperature Electrode | Temperature sensor electrode- ETS01 |
| DO Electrode | DO electrode-EDO01 |
| Standard Accessories | Magnetic Stirrer MS-01 |
| Meter Weight | 700 g |
* Power : 9V/ 500 mA External adaptor
* Operating Temperature : 15~45°C
* Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
* Meter Weight : 700 g
* Optional Accessories : Magnetic Stirrer MS-01, Battery backup unit BBEC-01 Calibration Standards
Conductivity / Dissolved Oxygen
ms,µs,mg/L,ppt,ppm,%,°C
CCDO
Features
* Conductivity, Resistivity, TDS, Salinity, DO Temperature modes.
* Automatic or Manual temperature Compensation.
* 1 point conductivity calibration for the entire range.
* Dissolved oxygen electrode with the salinity measurement feature to achieve automatic salinity & temperature compensation.
* Automatic air pressure correction with the help of air pressure sensor.
* Polarographic type DO electrode offers short polarization time, quick response and precise measurements.
* Bi directional RS232 interface. Baud rate selectable from 1200,2400,4800 and 9600.
* Single and continuous print out of measuring parameters.
* Multiple Printout types. Combinations selectable from Sr. No., Conductivity, TDS, Salinity, DO, Date, time and temperature.
* Real Time Clock.
* Calibration report as per GLP requirements.
* LCD display with Backlight.
* Memory storage of 100 measurements.
* Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
* Temperature calibration with respect to solution of known temperature.
| Conductivity Range | 0~200mS/cm spread into 5 ranges 0.00~20.00µS/cm, 20.0~200.0 µS/cm, 200~2000 µS/cm 2.00~20.00mS/cm, 20.0~200.0 mS/cm |
| Resistivity Range | 0~100MΩcm |
| TDS Range | 0~100ppt(g/L) |
| Salinity Range | 0~100ppt |
| DO Range | 0~40.00mg/L(ppm) |
| Temperature Range | -10.0 ~ 110.0°C |
| Conductivity Accuracy | ±1% FS |
| DO Accuracy | ±1% FS |
| Temperature Accuracy | ±0.4°C |
| ATC Conductivity | 0~50°C |
| ATC DO | 0~45°C |
| Conductivity Electrode | ECNG01 |
| DO Electrode | EDO01 |
| Temperature Electrode | Temperature sensor electrode- ETS01 |
| Standard Accessories | Magnetic Stirrer MS-01 |
| Meter Weight | 700 g |
* Power : 9V/ 500 mA External adaptor
* Operating Temperature : 15~45°C
* Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
* Meter Weight : 700 g
* Optional Accessories : Magnetic Stirrer MS-01, Battery backup unit BBEC-01 Calibration Standards
ELECTRODES
Contech, offers wide range of electro chemical sensors for the measurement of pH, ORP, Conductivity, DO, different Ion Concentration and Temperature . Choosing a right electrode for the specific requirement is important and the following to be considered while deciding an electrode for the measurement : accuracy of measurement, electrode body, reference construction and junction. Electrodes need to be calibrated with standards for achieving proper results. Electrodes should be stirred end maintained as per instructions to enhance the performance and life.
ELECTROCHEMICAL ELECTRODES
Electrode |
Model |
Specifications |
Details |
Application |
|
| pH combination - Plastic |
EpHP01 | Plastic housing, Ceramic Junction, 0~80°C Temp. range, BNC : Connector Size : 12Ø x 160mm |
Retention of accuracy for continuous measurement |
General lab application. Not suitable for high alkaline chemicals pH>12) |
 |
| pH combination with built in temperature sensor |
EpHP02 | Plastic housing, Ceramic Junction, 0~80°C Temp. range, BNC (pH) + Ø 3.5mm, 2 cores (temp) Connector, Size : 12 Ø x160mm |
Retention of accuracy for continuous measurement, collision resistant |
Simultaneous measurement of pH & temp & automatic temp. correction |  |
| pH combination - Glass |
EpHG04 | Glass housing 0~90°C Temp. range, glass ground joint Junction, BNC Connector, Size : 12 Ø x160 mm |
For high accuracy measurement |
Suitable for low ionic strength or high viscosity solvents, ideal for colloidal or feculent solvents |
 |
| Conductivity | ECNG-01 | 0.5 µS / cm - 200µS /cm range, 1.0+0.2 cm-1 constant, BNC Connector, Size : 12 Ø x155mm, 5x7mm Pt plate sensitive element (coated with Pt black) |
Cavity structure high precision and better repeatability | High precision conductivity measurement in lab |
 |
| Temperature Sensor | ETS-01 | -10 ~ 110°C, 5 Ø x 145mm, Customized Connector |
Stainless steel material, Platinum resistor Pt-100 |
High precision temperature measurement |
 |
| Dissolved Oxygen with built in temperature sensor |
EDO-01 | Polarographic, Size : 15 Ø X 180mm, polarization time : 3~5 mins mini round shell connector |
Easily removable diaphragm cap. Set Consists of DO membrane, Inner solution, cathode polish paper |
Measurement of dissolved oxygen with built in air pressure compensation & salinity correction |
 |
| ORP Combination Plastic |
EORP-01 | Plastic housing, Ceramic Junction, BNC : Connector, Sensitive element : 1mm Ø x5mm Pt pin, Size : 12 Ø x160 mm |
Plastic housing, No KCl refilling requirement | Common solution and waste water |
 |
ACCESSORIES
Magnetic Stirrer MS-01
* Stirring speed : 0~2300 rpm at no load.
* Base Diameter : 120mm
* Maximum stirring capacity : 1000ml
* Power supply : 6V DC Adaptor
* Dimension (mm) : 120 dia x 50mm height
* Weight : 500 gms.

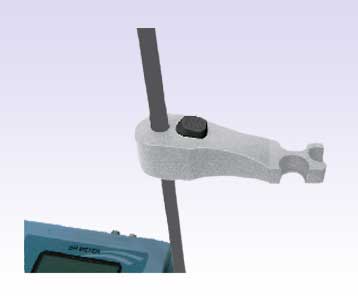

Electrode Holder EH-01
* Dimensions (mm) :115(L) x 35(W) x 28(H).
* Weight: 22 g.
* Suitable for Electrode : Dia 13mm~16mm.
MINI Printer CMP-01
* Printing Method : Thermal
* Character Type : Alpha Numeric
* Character per Line : 30 max.
* Communication : RS 232
* Baud Rate : 9600
* Printing Speed : 90mm per sec.
* Paper Width : 57mm
* Power Supply : 8v,3A DC
* Dimension (mm) : 135(L) x 195(D) x 100(H)
* Net Weight : 800g approx.
MINI Printer CMP-02
* Printing Method : Dot Matrix
* Character Type : 8x16dots
* Character per Line : 24
* Communication : RS 232
* Baud Rate : 9600
* Printing Speed : 0.7 line per sec.
* Paper Width : 57mm
* Power Supply : 5v DC, 1.5 A
* Dimension (mm) : 110(W) x 180(H) x 90(D)
* Net Weight : 600g approx.
Power Supply SMPS-04
* Input : 100~300 V AC, 47-63 Hz
* Output : 9VDC, 500mA
* Dimensions with pin (mm) : 50(L) x 70(H) x 70(D)
* Dimensions without pin (mm) : 50(L) x 70(H) x 37(D)
* Weight : 100g
Battery Backup BBEC-01
* Input : 100~300 V AC, 47-63 Hz
* Output : 9VDC, 500mA
* Battery : 6V, 1.2 Ah
* Deminsions : 150(L) x 65 (w) x 40(H)
* Weight : 600g
Calibration Solutions
| Solution | Corresponding Electrode |
Description | Accuracy |
| CSpH 4.0 | pH | pH 4.0 | + 0.1 pH |
| CSpH 7.0 | pH 7.0 | + 0.1 pH | |
| CSpH 9.2 | pH 9.2 | + 0.1 pH | |
| CSCN 1413 | Conductivity | 1413 µs/cm | +0.5% |
