CRANE SCALES

Contech manufactures Crane Scales for weighing upto 50 ton. Options available are remote key panel, heat shielding for high temperature application in foundries, Metallurgy and wireless remote Indicator.


CRANE SCALES ( 5kg to 20ton )

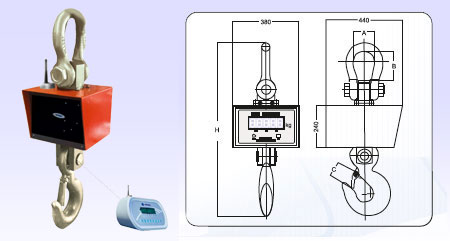

CRANE SCALES with Wireless Indicator ( 20 ton )

  • Wireless transmission maximum operating distance between the Scale and Indicator is 50 mtr.
  • All specifications are same as standard crane scales (CCS) except there is no display on the sale and there is no RF keyboard.
  • Power indication LED on the scale.
  • Battery & charger for the loadcell & transmitter inside the scale.
  • Weight display on the desktop indicator along with controls.
  • RS-232 Interface (Optional).
  • Indicator with optional battery backup.
  • Date & time entry facility.
  • Storage of weights in memory upto 100 samples.
  • Display hold facility.

    • MODELS CAPACITY ACC DIMENSION NET Weight
    (Kg)
    H A B C
    CCS-20T5K 20 ton 5kg 1058 130 230 65 100





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C
