ION CONCENTRATION METER
pH(pX),mg/L,ppm,mv,°C

CIC - SERIES

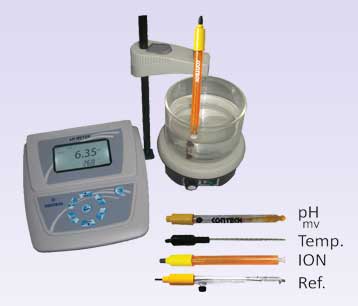

Contech Laboratory Ion Concentration Meters when used with particular Ion selective electrode and corresponding reference electrode can measure the correspondent electrode potential mV value, pX value and Ion concentration. These instruments are useful in the field of Food Safety, Petrochemical, Water quality checking, Aqua Culture, Biological Agriculture, Environmental Protection and Research and Education.

Features
* Concentration unit mv & temperature measurement.
* 2 point Ion concentration standard solution calibration.
* Automatic or Manual temperature Compensation.
* Bi directional RS232 interface. Baud rate selectable from 1200,2400,4800 and 9600.
* Single and continuous print out of readings.
* Multiple Printout types. Combinations selectable from Sr. No., concentration unit, mV and temperature.
* Real Time Clock. Calibration report as per GLP requirements.
* LCD display with Backlight.
* Memory storage of 100 measurements.
* Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
* Temperature calibration with respect to solution of known temperature.



  Model    CICNa     CICCa   CICF
   Measurement parameters    Na+ concentration, mV, Temp    Ca2+ concentration, mV, Temp    F- concentration, mV, Temp
   Measuring Units    pNa, mg/L, ppm    pCa, mg/L, ppm    pF, mg/L, ppm
   Measuring Range    0.00~9.00 pNa    0.00~9.00 pCa    0.00~9.00 pF
   mV Range   +1999.9mV   +1999.9mV   +1999.9mV
   Temperature range   -10~ 110°C   -10~ 110°C   -10 110°C
   Measurement Accuracy   +0.02pNa    +0.02pCa   +0.02pF
   mV Accuracy   +0.1% FS    +0.1% FS   +0.1% FS
   Temperature Accuracy   +0.5°C    +0.5°C   +0.5°C
   ATC Range    0~50°C    0~50°C    0~50°C
   Electrodes    EINaG01(Sodium Ion Electrode),
ERG02  (Reference Electrode),
ETS01(Temperature  Electrode)
  EICaP01(Calcium combination
Electrode),ETS01
(Temperature Electrode)
  EIFC01(Fluoride Ion Electrode),
ERG01 (Reference electrode)
ETS01(Temperature Electrode)

* Power : 9V/ 500 mA External adaptor
* Operating Temperature : 15~45°C
* Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
* Meter Weight : 700 g
* Optional Accessories : Magnetic Stirrer MS-01, Battery backup unit BBEC-01 Calibration Standards
