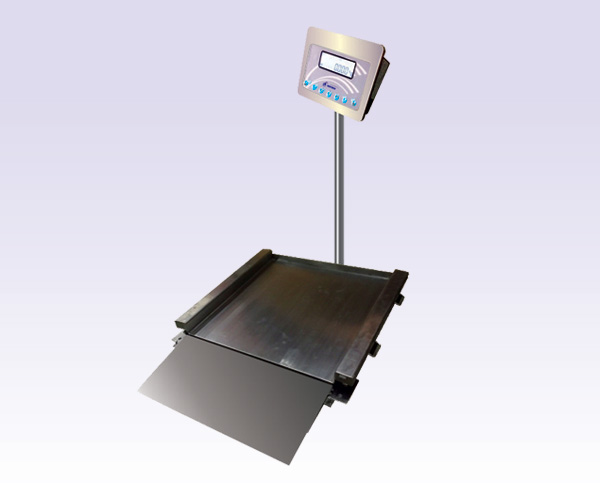

STAINLESS STEEL LOW PROFILE FLOOR SCALES (100g - 2Ton)
* Low Profile construction with S.S. ramp (Optional) to avoid pit in production area.
* Incorporates multiple number (4 nos) of high quality stainless steel IP 67/68 shear beam loadcells.
* Stainless Steel S.S. 202 Platform (S.S.304/S.S.316 optional).
* Stainless Steel IP67 GLP compliant Indicator with Real Time Clock (Optional).
* Large LCD dispaly with white backlite.
Specifications:
Models | CPL-300K200 | CPL-500K200 | CPL-1T500 | CPL-2T1K |
---|---|---|---|---|
Capacity | 300kg | 500kg | 1ton | 2ton |
Readability | 200g | 200g | 500g | 1kg |
Repeatability (+/-) | 200g | 200g | 500g | 1kg |
Linearity (+/-) | 400g | 500g | 1kg | 2kg |
Platform Size | 750mmx750mm | 1000mmx1000mm | 1000mmx1000mm | 1200mmx1200mm |
Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C
