GOLD PURITY CHECKING INSTRUMENTS

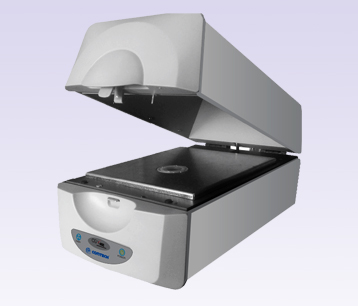

SILICON DRIFT DETECTORS CGX-103

SDD in place of Si-Pin Detector for enhanced performance & Detection (Spectral Resolution)

Specifications

* Detectable elements : Titanium to Uranium
* Measurement Results : Iron (Fe), Cobalt (Co), Nickel (Ni), Copper (Cu), Zinc (Zn), Ruthenium (Ru), Rhodium (Rh), Palladium (Pd), Silver (Ag), Cadmium( Cd), Indium (In), Tin (Sn), Osmium (Os), Iridium (Ir), Platinum (Pt), Gold (Au) -all metals separately.
* Accuracy of measurement : The Accuracy of measurement is better than Silicon-pin Detector
* Sensor : Silicon Drift Detector is used in the place of Silicon-Pincode Detector for Enhanced performance & spectral resolutions.
* Cooling for Detector : Thermoelectric
* Detection Range : 1%-----99.99%
* Testing Time : 30-----200 secs.
* Test Spot Area : 0.5mm
* Power Supply : 90-240 V AC, 50/60HZ
* Power Rating : 30 Watt
* Working Temperature : 15-25°C
* Relative humidity : <70%
* Operation atmosphere : Vibration free surface and air conditioned room
* Interface for Computer : Inbuilt (External computer required)
* Software for Operation : Menu Driven User Friendly Operating System
* Dimensions of Instrument : Length : 335mm Width : 225mm Height : 210mm (with test compartment cover in : closed position) & 330mm (in open position)
* Dimensions of Sample Chamber : Length : 235mm Width : 195mm Height : 80mm
* Net Weight : 12kg
