WEIGHING INDICATORS

Manufacturer, Supplier and Exporter of WEIGHING INDICATORS

Contech Platform Scales are offered with different types of Indicators for different working ambience and application. Flameproof Indicators are housed in special enclosures to meet the stringent requirement for different gas groups and are certified by Central Institute of Mining & Fuel Research , Government of India. Batching Indicators are offered with potential free relay contacts for the batching application.

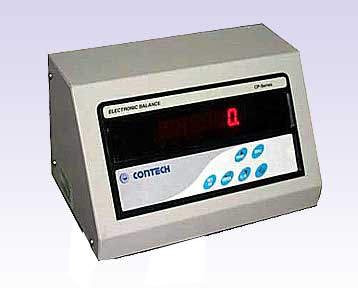

UNIVERSAL INDICATORS

Platform Scales / Systems are offered with various types of Indicators for different working ambience and application.

* Selectable weighing capacity and least count through keyboard.
* High speed A/D conversion
* Full digital calibration through keyboard enabling easy replacement of Indicator in the system.
* 3 point linearity correction.
* Optional Battery Backup
* Bright LED Display
* RS-232 Interface (optional)



Specifications
Taring Range : Up to full capacity
Response time : 3‐5 secs
Power Req : 90‐250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C

BATCH WEIGHING INDICATORS

Contech Platform Scales / Systems are offered with various types of Indicators for different working ambience and application.

* High Speed A/D conversion
* Full Digital calibration through keyboard enabling easy replacement of indicator in the system
* 3 Point Linearity correction
* Selectable weighing ranges
* Optional Real time clock
* Set point comparison for batching application
* Maximum 2 NO/NC potential free relay contacts
* Panel mounting or Desktop
* Optional battery backup
* Bright LED Display
* RS-232 Interface (Standard)



Specifications
Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C

FLAMEPROOF INDICATORS

Contech Platform Scales / Systems are offered with various types of Indicators for different working ambience and application.



* Cast aluminum construction in compliance with requirements in respect of flameproofness and temperature class suitable for use in Zone 1 & Zone 2 and gas groups IIA & IIB atmospheres. Certified by Central Institute of Mining & Fuel Research, Govt. of India.
* High Speed A/D conversion
* Optional battery backup
* Bright LED Display
* Suitable port along with cable glands for the power inlet & loadcell connection.
* Loadcell connection through Zenner Barrier.



Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C

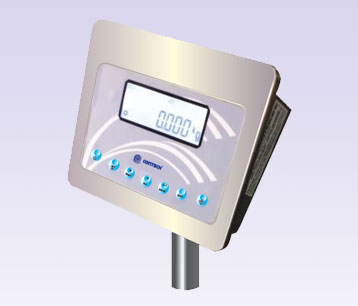

STAINLESS STEEL INDICATORS

Contech Platform Scales / Systems are offered with various types of Indicators for different working ambience and application.

* High protection grade stainless steel housing, Waterproof IP65.
* GLP Compliant suitable for pharmaceutical industries (Optional)
* Real Time Clock (RTC) (Optional)
* S.S. 304 material (Optional).
* Large size Backlite LCD display
* RS-232 interface to connect to a computer / printer. (Standard)





Taring Range : Up to full capacity
Response time : 3 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 15 to 45 deg C

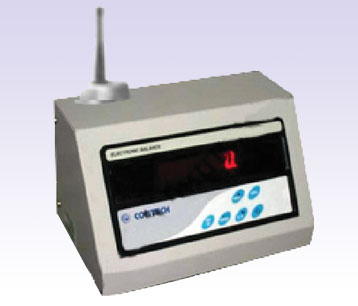

WIRELESS INDICATORS

Contech Platform Scales / Systems are offered with various types of Indicators for different working ambience and application.

* Fitted with radio frequency receiver for the reception of load signal from a loadcell fitted with radio frequency transmitter. Maximum distance upto 50 mtrs.
* All specifications are same as Universal Indicators.





Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C
