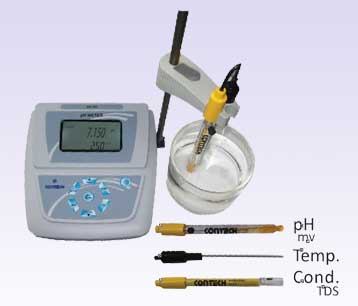

pH/Conductivity Meter
pH,mv,ms, µs,mg/L,ppt,°C
CpHC
Features
* pH , mV, Conductivity, Resistivity, TDS, Salinity, Temperature modes.
* Automatic or Manual temperature Compensation.
* 3 point pH calibration.
* Buffers selectable from 1.68pH, 4.00pH, 4.01pH, 6.86pH, 7.00pH, 9.18pH, 9.20pH. 10.01pH and 12.45pH.
* Automatic buffer recognition.
* 1 point conductivity calibration for the entire range.
* Bi directional RS232 interface. Baud rate selectable from 1200,2400,4800 and 9600.
* Single and continuous print out of measuring parameters.
* Multiple Printout types. Combinations selectable from Sr. No., pH, mV, conductivity, TDS, Salinity, Date, time and temperature.
* Real Time Clock.
* Calibration report as per GLP requirements.
* Electrode Slope and mV offset display.
* LCD display with Backlight.
* Memory storage of 100 measurements.
* Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
* Temperature calibration with respect to solution of known temperature.
| pH Range | 0-14pH |
| mV Range | ±1999.9mV |
| Conductivity Range | 0~200mS/cm spread into 5 ranges 0.00~20.00μS/cm, 20.0~200.0 μS/cm, 200~2000 μS/cm 2.00~20.00mS/cm, 20.0~200.0 mS/cm, |
| Resistivity Range | 0~100MΩcm |
| TDS Range | 0~100ppt(g/L) |
| Salinity Range | 0~100ppt |
| Temperature Range | -10.0~110.0°C |
| pH Accuracy | +0.02pH |
| mV Accuracy | +1mV |
| Conductivity Accuracy | +1% FS |
| Temperature Accuracy | +1% FS |
| ATC pH | 0~100°C |
| ATC Conductivity | 0~50°C |
| pH Electrode | pH combination electrode-EpHG07 |
| Temperature Electrode | Temperature sensor electrode-ETS01 |
| Conductivity Electrode | ECNG01 |
* Power : 9V/ 500 mA External adaptor
* Operating Temperature : 15~45°C
* Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
* Meter Weight : 700 g
* Optional Accessories : Magnetic Stirrer MS-01, Battery backup unit BBEC-01 Calibration Standards

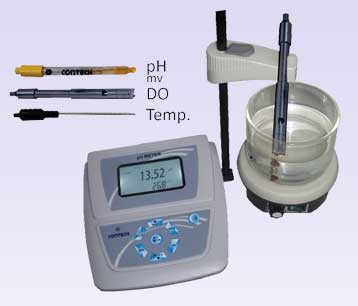

pH / Dissolved Oxygen Meter
pH,mv,mg/L,ppm,%,oC
CpHDO
Features
* pH , mV, DO, Temperature modes.
* Dissolved oxygen electrode with the salinity measurement feature to achieve automatic salinity & temperature compensation.
* Automatic air pressure correction with the help of air pressure sensor.
* Polarographic type DO electrode offers short polarization time, quick response and precise measurements.
* Automatic or Manual temperature Compensation.
* 3 point pH calibration.
* Buffers selectable from 1.68pH, 4.00pH, 4.01pH, 6.86pH, 7.00pH, 9.18pH, 9.20pH. 10.01pH and 12.45pH
* Automatic buffer recognition.
* Bi directional RS232 interface. Baud rate selectable from 1200,2400,4800 and 9600.
* Single and continuous print out of measuring parameters.
* Multiple Printout types. Combinations selectable from Sr. No., pH, mV, DO, date, time and temperature.
* Real Time Clock.
* Calibration report as per GLP requirements.
* Electrode Slope and mV offset display.
* LCD display with Backlight.
* Memory storage of 100 measurements.
* Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
* Temperature calibration with respect to solution of known temperature.
| pH Range | 0-14pH |
| mV Range | +1999.9mV |
| DO Range | 0~40.00mg/L(ppm) |
| Temperature Range | -10.0 ~ 110.0°C |
| pH Accuracy | +0.002pH |
| mV Accuracy | +1mV |
| DO Accuracy | +1%FS |
| Temperature Accuracy | +0.4°C |
| ATC pH | 0~100°C |
| ATC DO | 0~45°C |
| pH Electrode | pH combination electrode-EpHG07 |
| Temperature Electrode | Temperature sensor electrode- ETS01 |
| DO Electrode | DO electrode-EDO01 |
| Standard Accessories | Magnetic Stirrer MS-01 |
| Meter Weight | 700 g |
* Power : 9V/ 500 mA External adaptor
* Operating Temperature : 15~45oC
* Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
* Meter Weight : 700 g
* Optional Accessories : Magnetic Stirrer MS-01, Battery backup unit BBEC-01 Calibration Standards
Conductivity / Dissolved Oxygen
ms,µs,mg/L,ppt,ppm,%,oC
CCDO
Features
* Conductivity, Resistivity, TDS, Salinity, DO Temperature modes.
* Automatic or Manual temperature Compensation.
* 1 point conductivity calibration for the entire range.
* Dissolved oxygen electrode with the salinity measurement feature to achieve automatic salinity & temperature compensation.
* Automatic air pressure correction with the help of air pressure sensor.
* Polarographic type DO electrode offers short polarization time, quick response and precise measurements.
* Bi directional RS232 interface. Baud rate selectable from 1200,2400,4800 and 9600.
* Single and continuous print out of measuring parameters.
* Multiple Printout types. Combinations selectable from Sr. No., Conductivity, TDS, Salinity, DO, Date, time and temperature.
* Real Time Clock.
* Calibration report as per GLP requirements.
* LCD display with Backlight.
* Memory storage of 100 measurements.
* Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
* Temperature calibration with respect to solution of known temperature.
| Conductivity Range | 0~200mS/cm spread into 5 ranges 0.00~20.00μS/cm, 20.0~200.0 μS/cm, 200~2000 μS/cm 2.00~20.00mS/cm, 20.0~200.0 mS/cm |
| Resistivity Range | 0~100MΩcm |
| TDS Range | 0~100ppt(g/L) |
| Salinity Range | 0~100ppt |
| DO Range | 0~40.00mg/L(ppm) |
| Temperature Range | -10.0 ~ 110.0°C |
| Conductivity Accuracy | +1% FS |
| DO Accuracy | +1% FS |
| Temperature Accuracy | +0.4°C |
| ATC Conductivity | 0~50°C |
| ATC DO | 0~45°C |
| Conductivity Electrode | ECNG01 |
| DO Electrode | EDO01 |
| Temperature Electrode | Temperature sensor electrode- ETS01 |
| Standard Accessories | Magnetic Stirrer MS-01 |
| Meter Weight | 700 g |
* Power : 9V/ 500 mA External adaptor
* Operating Temperature : 15~45°C
* Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
* Meter Weight : 700 g
* Optional Accessories : Magnetic Stirrer MS-01, Battery backup unit BBEC-01 Calibration Standards
