Manufacturer, Supplier, Exporter of INDUSTRIAL SCALES
Contech offers total weighing solution for all the Industrial segments with various options. The applications are Table Top Scales, Piece Counting Scales, Platform Scales, Floor Scales, Pallet Scales, Waterproof Scales, Flameproof Scales, etc.

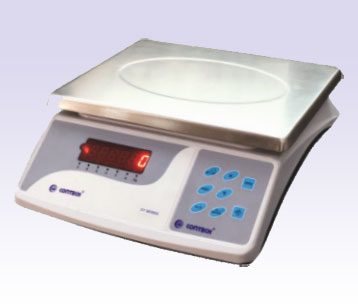

TABLETOP SCALES (0.1 g - 35 kg)
* Incorporates high quality loadcells.
* Multiple weighing units, Gram, Kilo gram, carat, litre, pound.
* Piece counting facility, upto 25 different types.
* Storage of weights in memory and printing, upto 100 weights.
* Power saving mode.
* Bi-directional RS232 interface to interface with computers and printers.
* Set point facility up to 2 limits with relay output (potential free contacts) - optional.
* Auto power off.
* Peak hold facility (Optional)
* Date and time facility.
* Multiple print options with Sr.no, date, time and weight in horizontal/vertical mode.
* Automatic zero tracking.
* User selectable Tare/Zero mode option with Net/gross facility for minimum use.
* Overload & Shock load Protection
* Bright LED display, high Bright Green LED display (optional)
* Battery backup (optional). Rechargeable sealed maintenance free battery
* Additional display (optional)
Specifications:
| MODELS | CTH-15001 | CTH-30001 | CTH-30002 | CTH-35001 | CT-30K1 | CT-35K2 |
|---|---|---|---|---|---|---|
| Capacity | Â 15kg | 30kg | 30kg | 35kg | 30kg | 35kg |
| Readability | 0.1g | 0.1g | 0.2g | 0.1g | 1g | 2g |
| Linearity (+/-) | 0.2g | 0.2g | 0.4g | 0.2g | 2g | 5g |
| Pan Size(mm) | 225 x 300 | 225 x 300 | 225 x 300 | 225 x 300 | 225 x 300 | 225 x 300 |
Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C

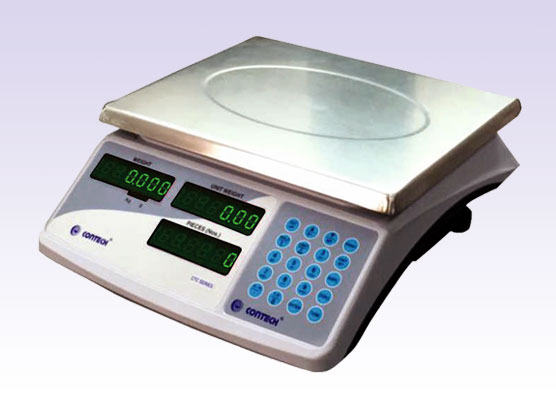

PIECE COUNTING SCALES (0.5 g - 35 kg)
* 3 separate display to indicate weight, unit weight and quantity.
* Numeric keyboard for easy entry of unit weight/sample quantity.
* Automatic count improvement mode.
* Resettable set points for check counting.
* Comparator function with audio indication (buzzer).
* Accumulation and recalling of counts with date/time.
* Optional comparator with relay outputs.
* Print option with date/time, count and weight.
Specifications:
| Models | CTC-6001 | CTC-10002 | CTC-15005 | CTC-30K1 | CTP-35K5 |
|---|---|---|---|---|---|
| Capacity | 6kg | 10kg | 15kg | 30kg | 35kg |
| Readability | 0.1g | 0.2g | 0.5g | 1g | 5g |
| Repeatability(+/-) | 0.1g | 0.2g | 0.5g | 1g | 5g |
| Linearity (+/-) | 0.2g | 0.4g | 1g | 2g | 5g |
| Pan Size | 225mm x 300mm | 225mm x 300mm | 225mm x 300mm | 225mm x 300mm | 225mm x 300mm |
| Models | CP-75K5Â Â |
CP-100K10 |
CP-200K20 |
CP-300K20 |
CP-500K50 |
CP-1T100 |
| Â Capacity | 75kg |
100kg |
200kg |
300kg |
500kg |
1 Ton |
| Â Readability | 5g |
10g |
20g |
20g |
50g |
100g |
| Â Repeatability(+/-) | 5g |
10g |
20g |
20g |
50g |
100g |
| Â Linearity (+/-) | 10g |
20g |
40g |
40g |
100g |
200g |
| Â Pan Size | 400mm x 400mm | 450mm x 500mm | 600mm x 600mm |
600mm x 600mm |
750x750mm |
1000x1000 mm |
Taring Range :Â Up to full capacity
Response time :Â 3-5 secs
Power Req :Â 90-250V, 50/60Hz, 10 Watt
Operating Temperature :Â 10 to 45 deg C

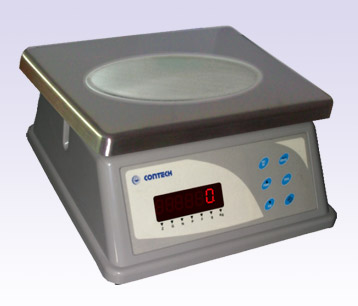

WATER PROOF TABLE TOP SCALES ( 0.1g to 6Kg )
* Electronics and loadcell totally protected from ingress of water.
* All exposed parts made of plastic & stainless steel.
* Incorporate high quality loadcells.
* Overload & shock protection for loadcells.
Specifications:
| Models | CT-1001 | CT-6K1 |
|---|---|---|
| Capacity | 1kg | 6kg |
| Readability | 0.1g | 1g |
| Linearity (+/-) | 0.2g | 2g |
| Platform Size | 220mm x 280mm | 225mm x 280mm |
Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C
WATER PROOF BENCH SCALES ( 0.1g to 60Kg )
* Optional IP 67/IP 68 SS loadcell.
* Optional IP 65 S. S. Indicator.
* SS 202, Stainless steel construction
* Optional SS 304 & SS 316 material.
Specifications:
| Models | CP-30K5 | CP-60K10 |
|---|---|---|
| Capacity | 30kg | 60kg |
| Readability | 5g | 10g |
| Linearity (+/-) | 10g | 20g |
| Platform Size | 400mm x 400mm | 400mm x 400mm |
Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C
PALLET SCALES (200 g - 2 ton)
* Optional Battery Backup.
* Overload and shock load protection.
* 100% subtractive tarring range.
* Standard bi-directional RS-232 Interface.
* Audio visual overload indication.
* Piece counting, filling, printing, accumulation, weighing in multiple units.
* Available GLP compliant model in complete SS material for food, pharmaceutical industries
Specifications:
| Model | CPL-1T500 | CPL-2T1K |
|---|---|---|
| Capacity | 1 ton | 2 ton |
| Readability | 500g | 1kg |
Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C

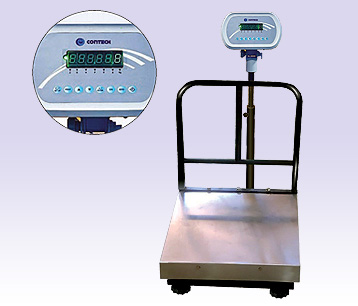

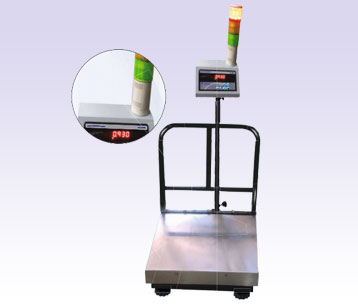

PLATFORM SCALES ( 5g - 1 ton )
* Indicator housed in a sturdy metal enclosure.
* Bright LED display.
* Multiple functions: Parts counting, accumulation, net/gross.
* Standard bi-directional RS-232 interface.
* Overload & shock load protection.
* Bright Red LED display.
* High bright green LED display (optional).
* Battery backup (optional).
* Rechargeable sealed maintenance free battery.
Specifications:
| Models | CP-50K0.2 | CP-60K0.5 | CP-75K5 | CP-100K1 | CP-100K10 | CP-200K5 | CP-200K20 | CP-300K5 | CP-300K20 | CP-450K10 | CP-600K50 | CP-1T100 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | 50kg | 60kg | 75kg | 100kg | 100kg | 200kg | 200kg | 300kg | 300kg | 450kh | 600kg | 1ton |
| Readability | 0.2g | 0.5g | 5g | 1g | 10g | 5g | 20g | 5g | 20g | 10g | 50g | 100g |
| Platform Size (mm) | 350x350 | 400x400 | 400x400 | 400x400 | 450x500 | 600x600 | 600x600 | 600x600 | 600x600 | 600x600 | 600x600 | 1000x1000 |
Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C
FLOOR SCALES ( 200g to 10 ton )
* Indicator housed in a sturdy metal enclosure.
* Bright LED display.
* Multiple functions: Parts counting, accumulation, net/gross.
* Standard bi-directional RS-232 interface.
* Overload & shock load protection.
* Bright Red LED display.
* High bright green LED display (optional).
* Battery backup (optional).
* Rechargeable sealed maintenance free battery.
Specifications:
| Capacity | CPL-1T/2T | CPL-2T/3T | CPL-3T/5T/10T |
|---|---|---|---|
| Readability | 200g/500g | 500g | 1kg/2kg |
| Platform Size | 1200x1200mm | 1500x1500mm | 2000mx2000mm |
Taring Range : Up to full capacity
Response time : 3-5 Â secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C

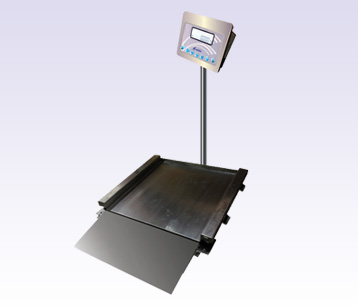

STAINLESS STEEL LOW PROFILE FLOOR SCALES (100g - 2Ton)
* Low Profile construction with S.S. ramp (Optional) to avoid pit in production area.
* Incorporates multiple number (4 nos) of high quality stainless steel IP 67/68 shear beam loadcells.
* Stainless Steel S.S. 202 Platform (S.S.304/S.S.316 optional).
* Stainless Steel IP67 GLP compliant Indicator with Real Time Clock (Optional).
* Large LCD dispaly with white backlite.
Specifications:
| Models | CPL-300K200 | CPL-500K200 | CPL-1T500 | CPL-2T1K |
|---|---|---|---|---|
| Capacity | 300kg | 500kg | 1ton | 2ton |
| Readability | 200g | 200g | 500g | 1kg |
| Repeatability (+/-) | 200g | 200g | 500g | 1kg |
| Linearity (+/-) | 400g | 500g | 1kg | 2kg |
| Platform Size | 750mmx750mm | 1000mmx1000mm | 1000mmx1000mm | 1200mmx1200mm |
Taring Range : Up to full capacity
Response time : 3-5 secs
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45 deg C
