CRANE SCALES

Contech manufactures Crane Scales for weighing upto 50 ton. Options available are remote key panel, heat shielding for high temperature application in foundries, Metallurgy and wireless remote Indicator.

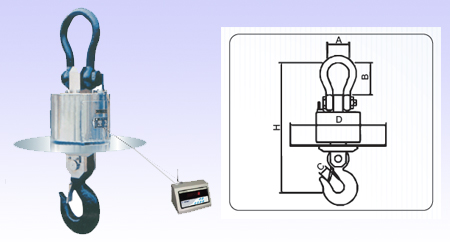

CRANE SCALES Heavy Duty with Wireless Transmission & Heat Insulating Shield 2kg to 30ton Manufacturer Supplier and Exporters

  • Special construction for high temperature shielding.
  • Minimum distance for normal operation is 2 mtr from a heat radiation source at 1500oC.
  • Wireless transmission maximum operating distance from the Indicator is 100 mtr.
  • Graphical backlite LCD display in the Indicator.
  • Real Time Clock (Optional).

    •    MODELS CAPACITY ACC DIMENSION NET
    Weight
    (Kg)
    H A B C D
    CCS-5T2K 5 ton 2kg 700 90 110 50 600 58
    CCS-20T5K 20 ton 5kg 1110 160 260 90 700 180
    CCS-30T10K 30 ton 10kg 1200 180 220 110 800 250
