CRANE SCALES

Contech manufactures Crane Scales for weighing upto 50 ton. Options available are remote key panel, heat shielding for high temperature application in foundries, Metallurgy and wireless remote Indicator.

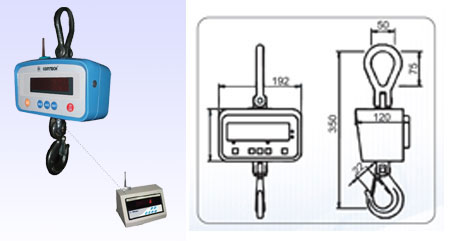

CRANE SCALES ( 100g to 2ton )

CRANE SCALES with Wireless Indicator ( 0.5, 1 ton )

  • Wireless transmission maximum operating distance between the Scale and Indicator is 50 mtr.
  • All specifications are same as standard crane scales (CCS) except there is no display on the sale and there is no RF keyboard.
  • Power indication LED on the scale.
  • Battery & charger for the loadcell & transmitter inside the scale.
  • Weight display on the desktop indicator along with controls.
  • RS-232 interface in the indicator (Optional).
  • Indicator with optional battery backup.
  • Date & time entry facility.
  • Storage of weights in memory upto 100 samples.
  • Display hold facility.
  •    MODELS CAPACITY ACCURACY NET Weight
    (Kg)
    CCS-500K100 500Kg 100g 4.2
    CCS-1T200 1000kg 200g  4.2





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

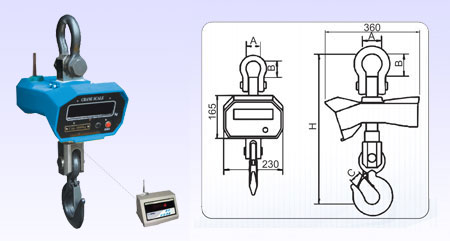

    CRANE SCALES ( 500g to 10ton )

    CRANE SCALES with Wireless Indicator( 2,3,5,10 ton )

  • Wireless transmission maximum operating distance between the Scale and Indicator is 50 mtr.
  • All specifications are same as standard crane scales (CCS) except there is no display on the sale and there is no RF keyboard.
  • Power indication LED on the scale.
  • Battery & charger for the loadcell & transmitter inside the scale..
  • Weight display on the desktop indicator along with controls.
  • RS-232 Interface in the indicator(Optional).
  • Indicator with optional battery backup.
  • Date & Time entry facility.
  • Storage of weights in memory upto 100 samples.
  • Display hold facility.
  •    MODELS CAPACITY ACC DIMENSION NET
    Weight
          H A B C (Kg)
    CCS-2T500 2ton 500g 465 56 65 25 12
    CCS-3T1K 3ton 1Kg 495 56 65 32 13
    CCS-5T2K 5ton 2Kg 595 72 90 36 18
    CCS-10T5K 10ton 5Kg 660 90 110 50 29

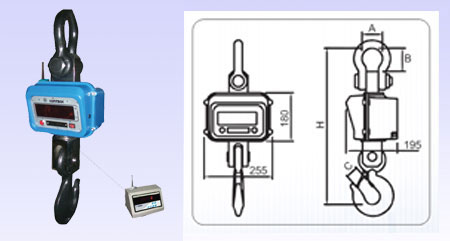

    CRANE SCALES ( 5kg to 20ton )

    CRANE SCALES with Wireless Indicator (15, 20 ton)

  • Wireless transmission maximum operating distance between the Scale and Indicator is 50 mtr.
  • All specifications are same as standard crane scales (CCS) except there is no display on the sale and there is no RF keyboard.
  • Power indication LED on the scale.
  • Battery & charger for the loadcell & transmitter inside the scale.
  • Weight display on the desktop indicator along with controls.
  • RS-232 interface in the indicator (Optional).
  • Indicator with optional battery backup.
  • Date & Time entry facility.
  • Storage of weights in memory upto 100 samples.
  • Display hold facility.
  •    MODELS CAPACITY ACC DIMENSION NET
    Weight
    (Kg)
    H A B C
    CCS-15T5k 15 ton  5kg 920 140 230 60 67
    CCS-20T5k 20ton 5kg 980 140 230 70 75





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C

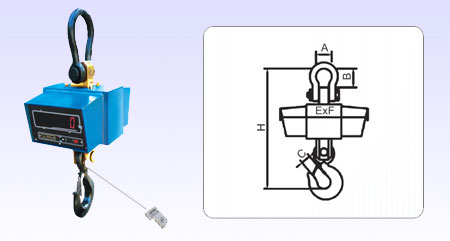

    CRANE SCALES ( 10kg to 50ton )

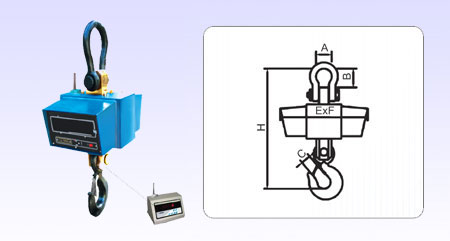

    CRANE SCALES with Wireless Indicator (30, 40, 50 ton)

  • Wireless transmission maximum operating distance between the Scale and Indicator is 50 mtr.
  • All specifications are same as standard crane scales (CCS) except there is no display on the sale and there is no RF keyboard.
  • Power indication LED on the scale.
  • Battery & charger for the loadcell & transmitter inside the scale.
  • Weight display on the desktop indicator along with controls.
  • RS-232 interface in the indicator (Optional).
  • Indicator with optional battery backup.
  • Date & time entry facility.
  • Storage of weights in memory upto 100 samples.
  • Display hold facility.
  •    MODELS CAPACITY ACC DIMENSION E & F NET Weight
    (Kg)
    H A B C
    CCS-30T10K 30 ton  10kg 1110 160 260 90 500x310 156
    CCS-40T20K 40 Ton 20kg 1200 180 220 110 440x410 156
    CCS-50T20K 50 Ton 20kg 1310 200 270 110 440x410 156





    Taring Range : Up to full capacity
    Response time : 5 seconds
    Power Req : 90-250V, 50/60Hz, 10 Watt
    Operating Temperature : 10 to 45 deg C
